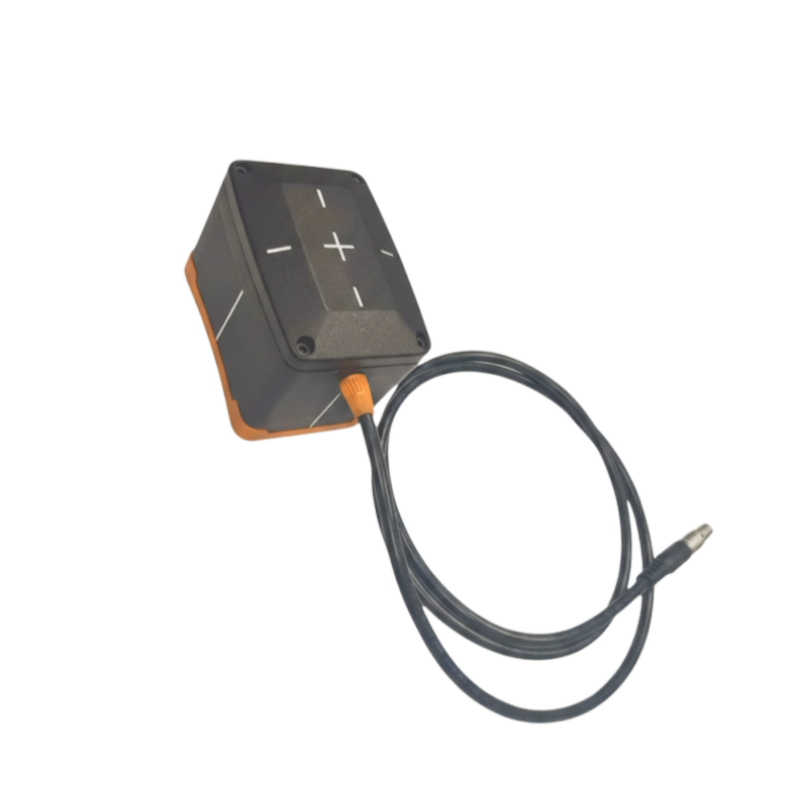

The BEONDT PEC200805 is a dedicated probe designed for use with the DT2008 handheld pulsed eddy current (PEC) testing instrument. It is independently calibrated and optimized by BEONDT for stainless steel materials, including austenitic, duplex, and ferritic stainless steels such as 304, 316L, 2205, 321, and 430.
Ürün No :
PEC200805Sipariş (ADEDI) :
1Ödeme :
T/TÜrün Menşei :
CHINARenk :
BLACKNakliye Limanı :
SHANGHAIKurşun zamanı :
10DAYSUnlike general-purpose carbon steel probes, the PEC200805 is specifically designed for stainless steel inspection applications. It addresses common challenges associated with the electrical conductivity and magnetic permeability characteristics of stainless steel, including signal drift and inaccurate wall thickness quantification when using conventional probes.
The sensor is designed to meet the requirements for corrosion assessment and wall thickness measurement of stainless steel pipelines and storage tanks with insulation or cladding in the petrochemical, nuclear power, and chemical processing industries.
Sensor Model: PEC200805

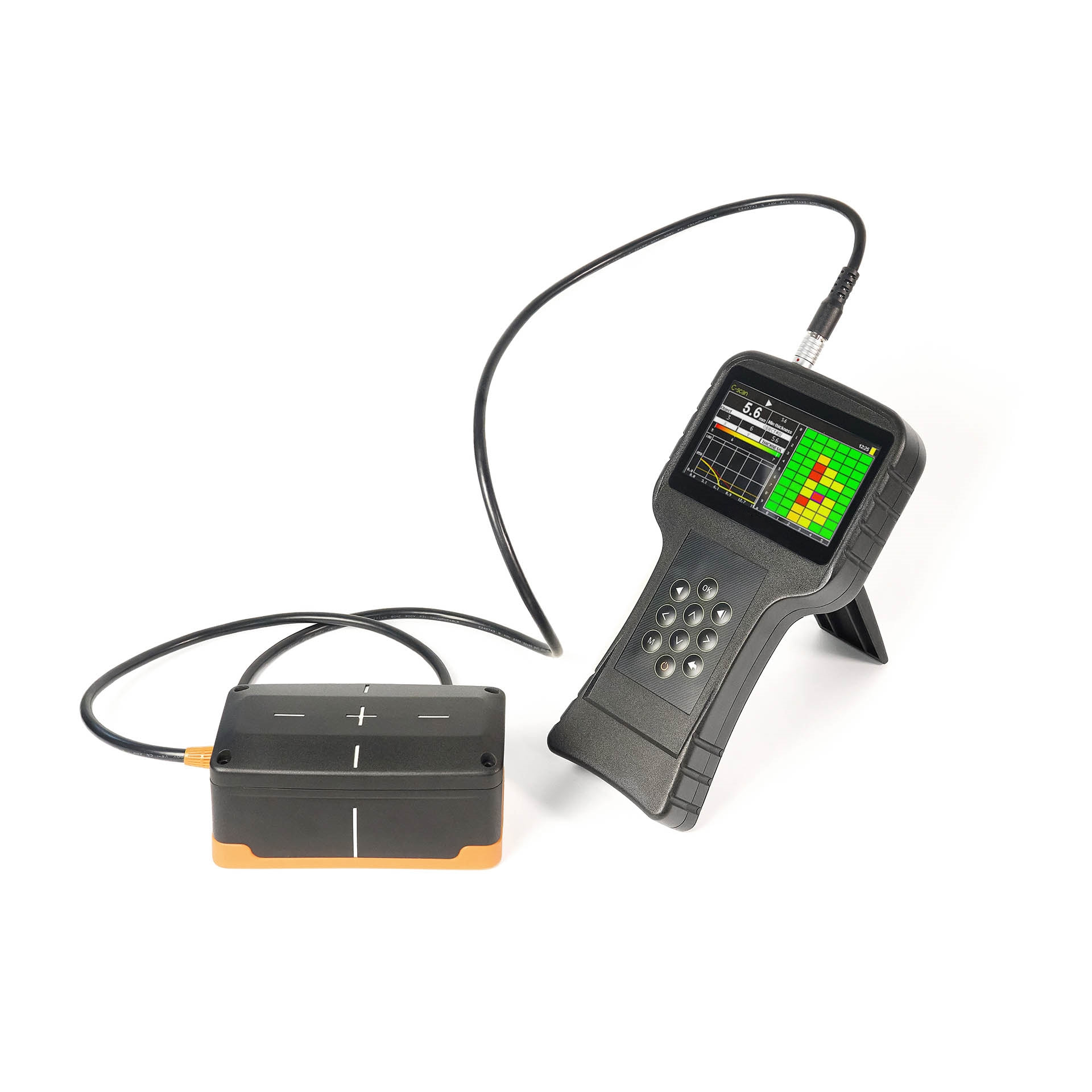

Compatible Instrument: BEONDT DT2008 Handheld Pulsed Eddy Current Testing Instrument
Applicable Materials: Austenitic, duplex, and ferritic stainless steels, including 304, 316L, 2205, 321, and 430.
| Sensor Model | Material Under Inspection | Cladding Material | Metal Wall Thickness Range | Insulation/Cladding Thickness Range |
|---|---|---|---|---|
| PEC200805 | Carbon steel | No cladding | Not applicable (X) | Not applicable |
| PEC200805 | Carbon steel | Stainless steel cladding | Not applicable (X) | Not applicable |
| PEC200805 | Carbon steel | Aluminum cladding | Not applicable (X) | Not applicable |
| PEC200805 | Carbon steel | Galvanized steel cladding | Not applicable (X) | Not applicable |
| PEC200805 | Stainless steel | No cladding | 0–30 mm | 0–200 mm |
| PEC200805 | Stainless steel | Stainless steel cladding | 0–30 mm | 0–200 mm |
| PEC200805 | Stainless steel | Aluminum cladding | 0–30 mm | 0–100 mm |
| PEC200805 | Stainless steel | Galvanized steel cladding | Not applicable (X) | Not applicable |
Note: Inspection ranges are based on the supplied specifications. Actual performance may vary depending on material properties, cladding conditions, and the inspection setup.
Dedicated stainless steel calibration: Independently optimized for stainless steel inspection applications.
Compatible with the DT2008: Designed specifically for the BEONDT DT2008 handheld pulsed eddy current testing instrument.
Broad stainless steel compatibility: Suitable for austenitic, duplex, and ferritic stainless steels, including 304, 316L, 2205, 321, and 430.
Improved measurement reliability: Designed to address signal drift and wall thickness quantification challenges associated with stainless steel.
Insulated component inspection: Supports corrosion assessment and wall thickness measurement through insulation or cladding, within the specified inspection ranges.
Industrial applications: Suitable for stainless steel pipelines and storage tanks in the petrochemical, nuclear power, and chemical processing industries.
The BEONDT PEC200805 Stainless Steel-Specific Pulsed Eddy Current Sensor provides a dedicated solution for stainless steel corrosion inspection, helping improve measurement reliability and inspection efficiency in demanding industrial environments.
